Tallahassee's layered history, from its 1824 founding as Florida's capital to its modern campus expansions, has created a patchwork of subsurface conditions that standard drilling alone can't always decode. The city sits atop the deeply weathered sediments of the Tallahassee Hills, where ancient marine terraces left behind a complex interface between stiff clays and the underlying Ocala Limestone. In our lab, we've seen how this geologic transition—often riddled with dissolution features—can surprise even experienced drillers. Seismic tomography gives us a continuous cross-section of these materials, measuring p-wave and s-wave velocities to pinpoint the exact depth to competent rock. For projects near the Cody Scarp, where soil stiffness can shift dramatically within a few hundred feet, we pair seismic refraction surveys with our tomographic processing to delineate the boundary between the Hawthorn Group sediments and the limestone, helping engineers avoid costly foundation redesigns during construction.
A tomographic velocity model doesn't just map layers—it quantifies the stiffness contrast across Tallahassee's karst-prone limestone interface, giving structural engineers the numbers they need for foundation design.
Our approach and scope
Local ground factors
In Tallahassee, what often looks like competent ground at the surface can hide a dissolving limestone horizon just 15 to 20 feet down. We've reviewed countless geotechnical reports where standard SPT borings on a 50-foot grid completely missed a narrow, clay-filled sinkhole throat because the feature fell between boreholes. That's where the continuous coverage of a seismic tomography line becomes a game-changer—the velocity drop across a dissolution feature is unmistakable once you see it in a 2D cross-section. The risk isn't theoretical: several commercial structures along Apalachee Parkway and Tennessee Street have required expensive underpinning when post-construction settlement revealed undocumented karst voids. For taller structures governed by ASCE 7, missing a low-velocity anomaly can shift the site classification from C to D, altering the design spectral accelerations and seismic base shear. We run the tomographic lines in two perpendicular directions whenever possible, because karst features in the Floridan aquifer system don't follow a predictable orientation, and a single line can give a false sense of continuity. The data also helps target confirmatory borings exactly where the velocity model shows a suspect zone, rather than drilling blind on a rigid grid.
Reference standards
ASTM D5777-18 (Standard Guide for Using the Seismic Refraction Method), ASTM D4428/D4428M-14 (Crosshole Seismic Testing), ASCE/SEI 7-22 (Minimum Design Loads—Site Classification using Vs30), IBC 2021 Chapter 16 (Structural Design—Site-specific seismic ground motion procedures), FHWA NHI-05-037 (Geophysical Methods for Highway Applications)
Additional services

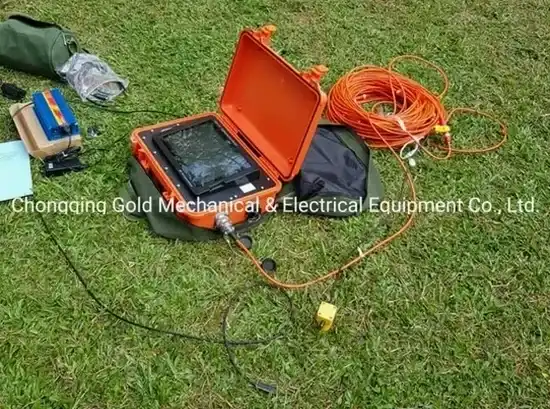

2D Refraction Tomography
High-resolution p-wave and s-wave velocity cross-sections for mapping depth to limestone, detecting dissolution zones, and characterizing soil stiffness for foundation design across Tallahassee's karst terrain.
Seismic Site Classification (Vs30)
Combined active-source MASW and refraction tomography to determine the average shear-wave velocity in the upper 30 meters, supporting IBC and ASCE 7 site class determinations for structural design.
Karst Void Detection Surveys
Targeted tomographic lines designed to identify low-velocity anomalies associated with clay-filled sinkholes and dissolution pipes in the Ocala Limestone, reducing the risk of differential settlement under foundations.
Rippability and Excavation Studies
Seismic velocity-based assessments of rock excavatability for site preparation, helping contractors determine where mechanical ripping transitions to blasting in the limestone horizons beneath Tallahassee.
Typical parameters
Questions and answers
What's the difference between seismic refraction and seismic tomography for a site in Tallahassee?
Conventional refraction assumes flat, continuous layers and gives you a simple layered model—basically depth and velocity for each refractor. Tomography goes further by dividing the subsurface into a grid of small cells and iteratively solving for the velocity in each one. For Tallahassee's karst terrain, where the limestone surface is irregular and dissolution features create lateral velocity changes, tomography produces a far more realistic image. It also handles velocity inversions—like a soft saturated clay beneath a stiff desiccated crust—which standard refraction can't resolve. The trade-off is processing time and cost, but for sites near the Cody Scarp or where sinkhole activity is suspected, the added detail usually justifies it.
How deep can seismic tomography image in Tallahassee's soils?
With a standard 115-meter geophone spread and an accelerated weight drop source, we typically achieve 30 to 50 meters of penetration in Tallahassee's Hawthorn Group clays and underlying Ocala Limestone. The actual depth depends on the velocity contrast at depth and the ambient noise conditions—urban sites along Monroe Street or near FSU campus require more stacking to overcome traffic and utility noise. For deeper targets, we extend the spread length and use a larger energy source like a buffalo gun or small explosive charge, but most foundation investigations in Leon County only need the upper 20 to 30 meters to identify the limestone surface and any karst features.
What does a seismic tomography survey cost in Tallahassee?
For a typical Tallahassee site with a 115-meter spread and one or two source positions, the cost ranges from US$2,530 to US$5,930 depending on line length, number of spreads, and whether you need both p-wave and s-wave data. Urban sites with high ambient noise, or projects requiring multiple intersecting lines to map karst features, fall toward the higher end. The quote includes mobilization within Leon County, field acquisition, tomographic inversion processing, and a signed report with interpreted velocity cross-sections. We'll confirm the scope after a site walk to assess access and noise sources.
Can seismic tomography tell us if there's a sinkhole under the property?
It's one of the best non-invasive tools for that purpose. A clay-filled or air-filled void in the limestone shows up as a distinct low-velocity anomaly in the tomographic cross-section—velocities might drop from 3,000 m/s in competent limestone to 800–1,200 m/s in the collapsed or infilled zone. The method images the velocity structure, not the void directly, so we always recommend targeted borings to confirm what the velocity anomaly represents. In Tallahassee's karst environment, we run lines in two perpendicular directions because a narrow dissolution pipe parallel to a single line can be nearly invisible. The velocity model also gives structural engineers the lateral extent of the anomaly to plan remediation.
